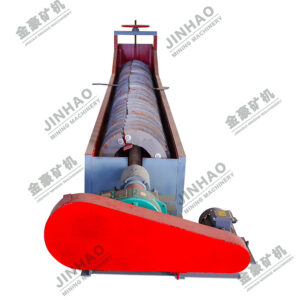

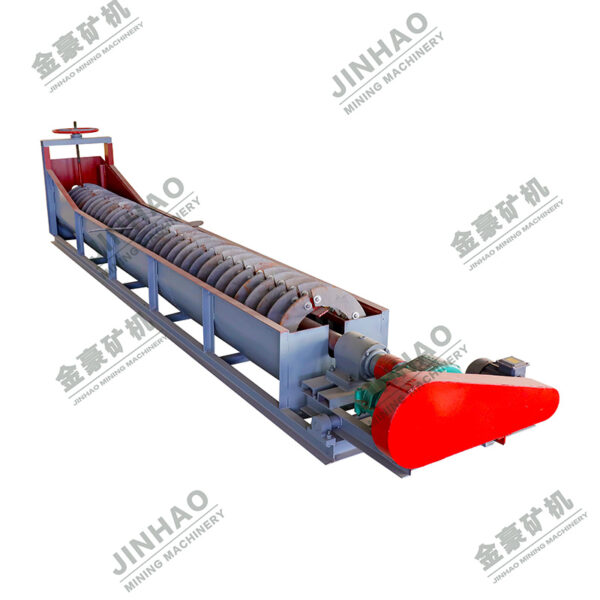

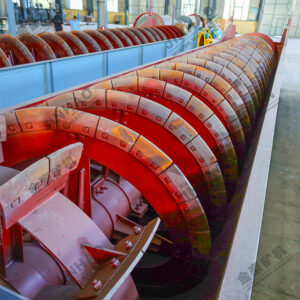

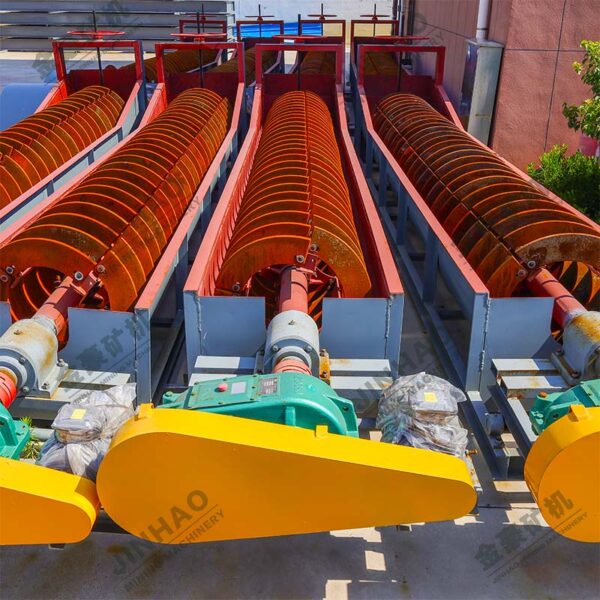

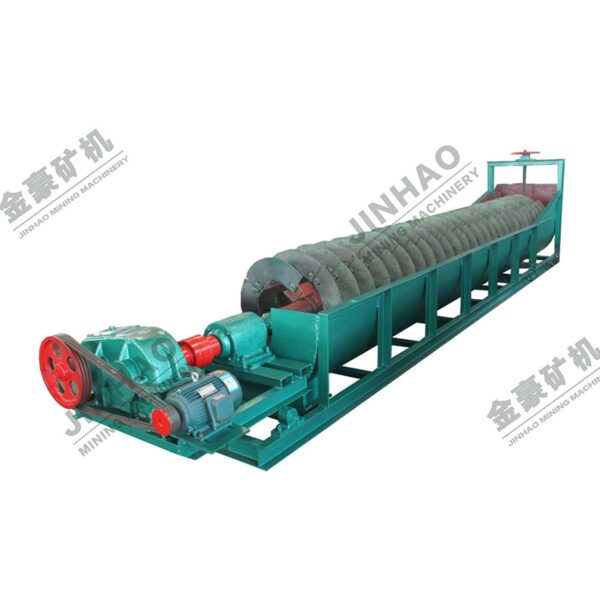

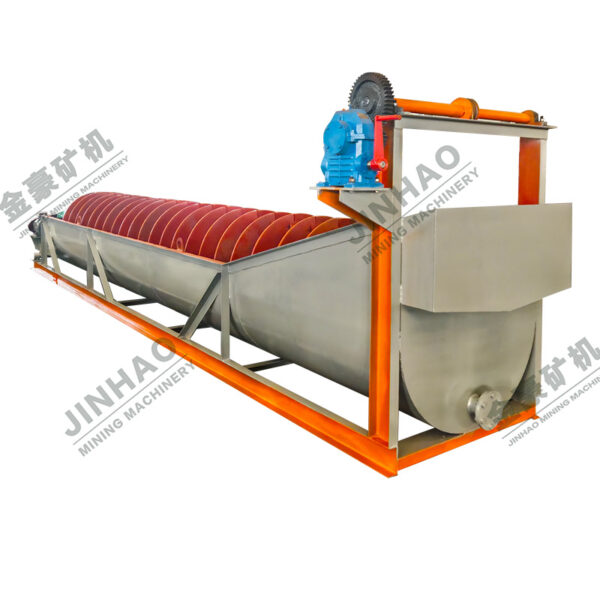

Single Spiral Classifier

Product Features
-In order to match with the ball mill’s drum feeder, a sand scraper is added so that the slurry flows laterally into the ball mill drum feeder.
-Some models of the classifier adopt rolling bearings instead of the original sliding bearings, which reduces friction resistance, avoids frequent replacement and maintenance of bearings, and use ZQ or ZL type gear reducers, thereby reducing installation and maintenance space.
-The lubrication components have been improved. Large-size products are equipped with grease pumps, ensuring reliable lubrication.

Selection Guidelines
-When ordering, in addition to specifying the model and quantity, the spiral direction of the classifier must also be indicated.
-When used in conjunction with the corresponding ball mill, extended types can be designed and manufactured according to user requirements (extended sand-return section or sedimentation section), and the extension length must be specified.
-The classifier is available with several rotation speeds. If the user has no special requirements, production will follow the conventional speed.

ENQUIRY!

Description

Technical Data Sheet of FL Spiral Classifier
Type	Model	Specifications	Spiral diameter(mm)	Spiral Rotational Speed(r/min)	Trough Length(mm)	Trough Width(mm)	Inclination Angle(°)	Overflow Capacity(t/d)	Return Sand(t/d) Capacity	Motor Model	Motor Power(kW)	Lifting Motor Model	Lifting Motor Power(kW)	Weight(kg)
High Weir Single Spiral Classifier	FLG-5	φ500	500	8~15	4500	555	14°~18°30′	32	143～261	Y90L-6	1.1	Manual		1600
	FLG-7	φ750	750	4~9.9	5500	830	14°~18°30′	65	256~564	Y132S-6	3	Manual		2900
	FLG-10	φ1000	1000	1.6~7.6	6500	1112	14°~18° 30′	85	473～1026	Y132M₂-6	5.5	Manual		4400
	FLG-12	φ1200	1200	5~7	6500	1372	14°~18°30′	155	1170~1600	Y132M₂-6	5.5	Y90L-4	1.5	8800
	FLG-15	φ1500	1500	2~6	8265	1664	14°~18°30′	235	1140～2740	Y160M-6	7.5	Y100L1-4	2.2	11680
	FLG-20	φ2000	2000	3.6~5.6	8400	2200	14°~18°30′	400	3890～5940	Y160L-4	15	Y100L2-4	3	20450
	FLG-24	φ2400	2400	3.6	9130	2600	14°~18° 30′	580	6800	Y180M-4	18.5	Y100L2-4	3	25650
	FLG-30	φ3000	3000	3.2	12500	3200	14°~18°30′	890	11650	Y225M-6	30	Y112M-4	4	37000
High Weir Double Spiral Classifier	2FLG-12	φ1200	1200	6	6500	2600	14°~18°30′	310	2340～3200	Y132M-6	5.5×2	Y90L-4	1.5×2	15840
	2FLG-15	φ1500	1500	2.5,4,6	8250	3200	14°~18°30′	470	2280~5480	Y160M-6	7.5×2	Y100L-4	2.2×2	22100
	2FLG-20	φ2000	2000	3.6,5.5	8400	4280	14°~18°30′	800	7780~11880	Y160L-6/4	11×2	Y100L2-4	3×2	36400
	2FLG-20	φ2000	2000	3.6,5.5	8400	4280	14°~18°30′	800	7780~11880	Y160L-6/4	15×2	Y100L2-4	3×2	36400
	2FLG-24	φ2400	2400	3.67	9130	5100	14°~18°30′	1160	13600	Y180M-4	8.5×2	Y100L2-4	3×2	45874
	2FLG-30	φ3000	3000	3.2	12500	6300	14°~18° 30′	1785	23300	Y200L₂-6	22×2	Y112M-4	4×2	73030
Submerged Single Spiral Classifier	FLC-10	φ1000	1000	5	8400	1112	4°~18°30′	75	473～1026	Y132M2-6	5.5	手动		6000
	FLC-12	φ1200	1200	5,6,7	8400	1372	4°~18° 30′	120	1170～1630	Y160M-6	7.5	Y100L1-4	2.2	11020
	FLC-15	φ1500	1500	2.5,4,6	10500	1664	4°~18°30′	185	1140~2740	Y160M-6	7.5	Y100L1-4	2.2	15340
	FLC-20	φ2000	2000	3.6,5.5	12900	2200	4°~18°30′	320	3890～5940	Y160L-6/4	11月15日	Y100L-4	3	29060
	FLC-24	φ2400	2400	3.6	11130	2600	4°~18° 30′	455	6800	Y180M-4	18.5	Y112M-4	4	37267
	FLC-30	φ3000	3000	3.2	14300	3200	4°~18°30′	705	11650	Y225M-6	30	Y112M-4	4	43500
Submerged Double Spiral Classifier	2FLC-12	φ1200	1200	6	8400	2600	4°~18°30′	240	1770～2800	Y160M-6	7.5×2	Y90L-4	1.5×2	19610
	2FLC-15	φ1500	1500	2.5,4,6	10500	3200	4°~18° 30′	370	2280~5480	Y160M-6	7.5×2	Y100L1-4	2.2×2	27450
	2FLC-20	φ2000	2000	3.6.5.5	12900	4280	4°~18° 30′	640	7780～11880	Y160L-614	11×2 15×2	Y100L₂-4	3×2	50000
	2FLC-24	φ2400	2400	3.6	11130	5100	14°~18° 30′	910	13700	Y180M-4	18.5×2	Y112M-4	4×2	65283
	2FLC-30	φ3000	3000	3.2	14300	6300	4°~18° 30′	1410	23300	Y225M-6	30×2	Y112M-4	4×2	84870
