| Technical Data Sheet of Double Spiral Classifier | ||||||||||||||
| Type | Model | Specification | Spiral Diameter(mm) | Rotational Speed (r/min) |
Tank Body Length (mm) | Tank Body Width(mm) |
Tank Body Angle (°) |
Overflow Quantity (t/24h) |
Sand Return Quantity (t/24h) |
Motor Model | Power(kW) | Lifting Motor Model |
Lifting Power (kW) |
Weight(t) |
| Highweir Double Spiral | 2FG-12 | φ1200 | 1200 | 5,6,7 | 6500 | 2620 | 14°-10.5° | 300 | 2290-3200 | Y132M2-6 | 5.5×2 | XWD4-29-2.2 | 2.2×2 | 15.8 |
| 2FG-15 | φ1500 | 1500 | 2.5,4,6 | 8265 | 3300 | 14°-18.5° | 460 | 2240-5360 | Y160M-6 | 7.5×2 | XWD4-29-2.2 | 2.2×2 | 22.1 | |
| 2FG-20 | φ2000 | 2000 | 5.4 | 8400 | 4296 | 14.5°-18.5° | 800 | 11880 | Y160L-4 | 15×2 | XWD4-29-2.2 | 2.2×2 | 36.4 | |
| 2FG-24 | φ2400 | 2400 | 3.6,5,4,6,3 | 9160 | 5040 | 14°-18.5° | 1160 | 13600 | Y160L-6/4 | 11×2/15×2 | XWD4-29-2.2 | 2.2×2 | 45.9 | |
| 2FG-30 | φ3000 | 3000 | 3.17 | 12500 | 6300 | 14°-18.5° | 1785 | 23300 | Y180L-4 | 22×2 | Y112M-4 | 4×2 | 77.08 | |
| 2FG-35 | φ3500 | 3500 | 2.85 | 14000 | 7300 | 16°-18.5° | 2580 | 29500 | Y225S-4 | 37×2 | Y112M-4 | 4×2 | 113.5 | |
| Immerged Double Spiral | 2FC-12 | φ1200 | 1200 | 6 | 8400 | 2620 | 14°-10.5° | 240 | 1770-2800 | Y160M-6 | 7.5×2 | XWD4-29-2.2 | 2.2×2 | 19.6 |
| 2FC-15 | φ1500 | 1500 | 2.5,4,6 | 10500 | 3200 | 14°-18.5° | 370 | 2240-5360 | Y160M-6 | 7.5×2 | XWD4-29-2.2 | 2.2×2 | 27.5 | |
| 2FC-20 | φ2000 | 2000 | 5.4 | 12800 | 4260 | 14.5°-18.5° | 640 | 7780-11880 | Y180M-4 | 18.5×2 | XWD4-29-2.2 | 2.2×2 | 50 | |
| 2FC-24 | φ2400 | 2400 | 3.6 | 11160 | 5040 | 14°-18.5° | 910 | 13700 | Y200L1-6 | 18.5×2 | XWD4-29-2.2 | 2.2×2 | 65.3 | |
| 2FC-30 | φ3000 | 3000 | 3.17 | 14300 | 6300 | 14°-18.5° | 1410 | 23300 | Y200L-4 | 30×2 | Y112M-4 | 4×2 | 84.9 | |

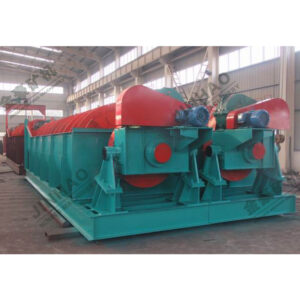

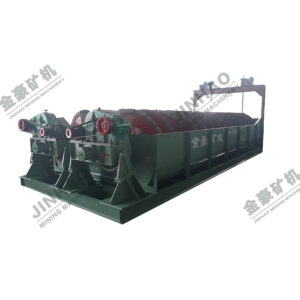

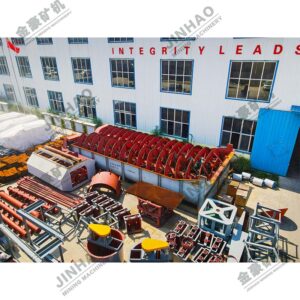

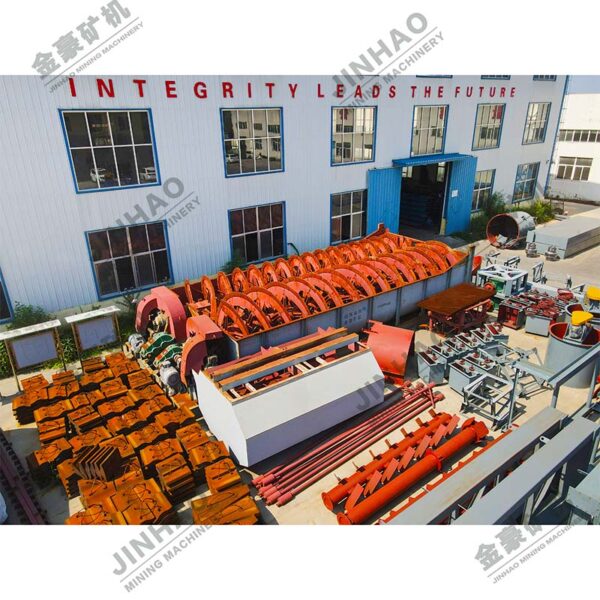

Double Spiral Classifier
Product Features

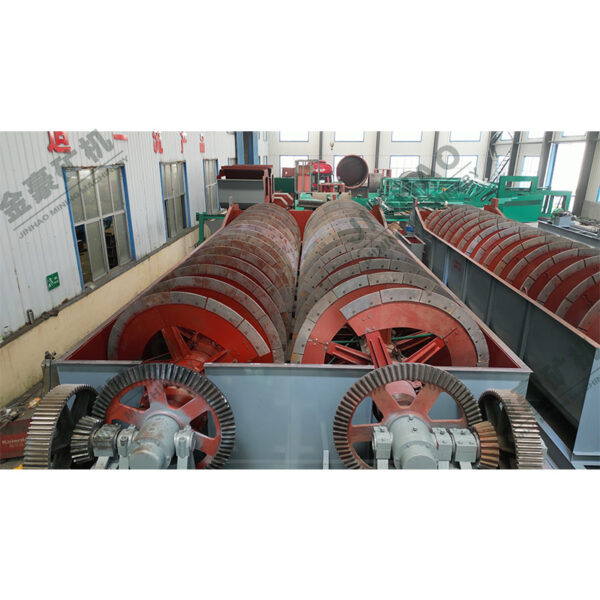

Adopting symmetric layout of twin spirals, the machine realizes uniform slurry mixing and dispersion with a stable classification liquid level. The overflow particle size is stably controlled to prevent coarse particles from mixing into overflow products.
– The spiral blades are made of wear resistant material, supporting long term continuous operation for copper ore, lead zinc ore, graphite ore, gold ore and other mineral materials.
– The tank features larger effective volume and high sand return conveying efficiency. It efficiently feeds coarse materials back to ball mills and improves the overall capacity of closed circuit grinding in a circulation system.
– The modular structure enables convenient disassembly and replacement of wearing parts. Reserved inspection ports on the tank shorten downtime maintenance and cut on site operation costs effectively.
Selection Guidelines
When placing an order, besides specifying the model and quantity, the spiral rotation direction of the classifier must also be indicated.
– The classifier is matched with corresponding mills. Extended versions (extended sand return zone, extended sedimentation zone) can be designed and manufactured according to customer requirements, and the extension length shall be specified.
– The classifier is available in multiple rotation speeds. If no special requirements are put forward by the customer, the machine will be manufactured with standard rotation speed.
